NON ASBESTOS JOINTING SHEETS WITH WIRE

HNA-100 (METALLIC)

Cellulose Fibre, NBR 8 Organic Fibre with Metal Gauge Centre, Water/Oil Resistant.

For light to medium loadings, suitable for low operating pressure, e.g. transformers, compressors
and oil pans in internal combustion engines.

Cellulose Fibre, NBR 8 Organic Fibre with Metal Gauge Centre, Water/Oil Resistant.

For light to medium loadings, suitable for low operating pressure, e.g. transformers, compressors
and oil pans in internal combustion engines.

Technical Specifications:

Properties	Unit	Specified Value
Density	gm/cm³	1.70-2.10
Tensile Strength
(a) ACC to ASTM F 152 (Across Grain)	N/mm²	>7
(b) ACC to DIN 52910 (Across Grain)	N/mm²	>5
Compressibility	%	7-15
Recovery	%	>40
Fluid Absorption
(a) In ASTM Oil No. 3 Increase in Mass Increase in Thickness	% %	<15 <10
(b) In Fuel B Increase in Mass Increase in Thickness	% %	<10 <10
(c) In Water/Antifreeze Increase in Mass Increase in Thickness	% %	<15 <15
Ignition Loss	%	<40
Sealability Against Nitrogen	CM³/min	–
Stress Resistance		–
16h 300 ^oC	N/mm²	–
16h 175 ^oC	N/mm²	–

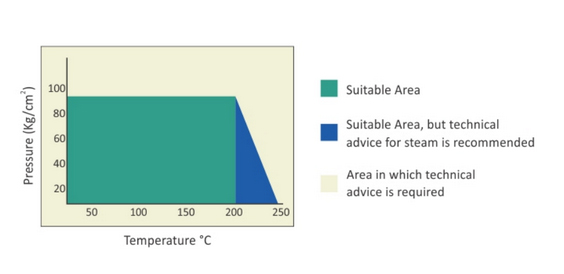

Max. Peak Temperature	^oC	250
Max. Continuous Temperature	^oC	250
Max. Operating Pressure	Kg/CM²	90

Graphite coating, teflon coating, antistick coating are also available on request. Properties applicable for 2.0mm thick material
